Incoloy 865(UNS S35115)

1.Incoloy 865 INTRODUCTION

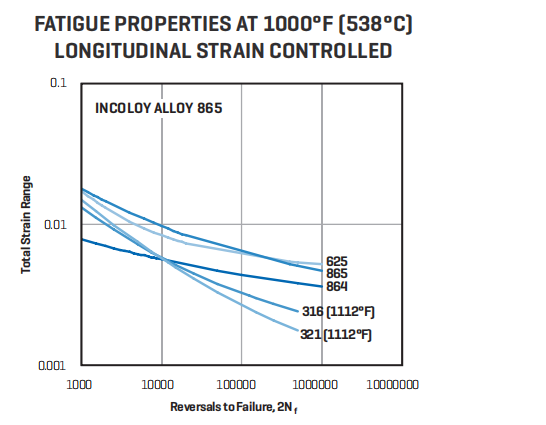

INCOLOY alloy 865 (UNS S35115) is an  economical, high-performance corrosionresistant alloy. Developed from the technology  of INCOLOY alloy 864, it improved strength,  ductility and fatigue resistance at reduced  cost. The alloy was designed for automotive  applications such as flexible couplings and  exhaust gas recirculation (EGR) components.  However, with its excellent combination of  strength and corrosion resistance, alloy 865  may be evaluated for chemical processing and  marine applications.

2.Incoloy 865 STANDARD  PRODUCT FORMS

Sheet and strip.

3.Incoloy 865 MAJOR  SPECIFICATIONS

UNS S35115 ASTM A240/A480

4.Incoloy 865 LIMITING CHEMICAL  COMPOSITION, %

Ni ......19.0 – 22.0

Cr......23.0 – 25.0

Mo....1.50 – 2.50

N.......0.20 – 0.30

Mn......... 1.0 max.

C....... 0.020 max.

P........ 0.045 max.

 S....... 0.015 max.

5.Incoloy 865 PHYSICAL CONSTANTS  AND THERMAL  PROPERTIES

Density, Ib/in3 ........................................................................0.276

g/cm3 ..........................................................................7.64

Melting Range, °F ..................................................2484 – 2535

°C ..................................................1362 – 1390

Permeability at 200 Oersted (15.9 kA/m)......................1.002

Electrical Resistivity, ohm • circ mil/ft............................... 553

μΩ•m....................................................92

Young's (Tensile) Modulus, ksi................................ 28.7 x 103

GPa.......................................... 195

6.Incoloy 865 TYPICAL MECHANICAL  PROPERTIES

(Annealed)

Tensile Strength, ksi............................................................... 110

MPa............................................................ 758

Yield Strength (0.2% Offset), ksi...........................................54

MPa..................................... 372

Elongation, % ..............................................................................50

Reduction of Area, %.................................................................44

Hardness ............................................................................ 88 HRB
