Inconel 601(UNS  N06601 W.Nr.2.4851)

1.Inconel 601 INTRODUCTION

A nickel-chromium alloy with an addition of  aluminum for outstanding resistance to oxidation  and other forms of high-temperature corrosion.  It also has high mechanical properties at elevated  temperatures. Used for industrial furnaces;  heat-treating equipment such as baskets, muffles,  and retorts; petrochemical and other process  equipment; and gas-turbine components.

2.Inconel 601 STANDARD  PRODUCT FORMS

Pipe, tube, sheet, strip, plate, round bar, flat bar, forging  stock, hexagon and wire.

3.Inconel 601 MAJOR  SPECIFICATIONS

UNS N06601

ASTM B 166 – B 168, B 751,   B 775, B 829

ASME SB-166 – SB-168,   SB-751, SB-775, SB-829

ASME Code Case 1500

DIN 17742, 17750 – 17754

Werkstoff Nr. 2.4851

EN 10095 ISO 6207, 6208, 9723-9725

4.Inconel 601 LIMITING CHEMICAL  COMPOSITION, %

Ni......58.0 – 63.0

Cr......21.0 – 25.0

Al ...........1.0 – 1.7

Fe......Remainder

C..........0.10 max.

Mn......... 1.0 max.

Si.........0.50 max.

S....... 0.015 max.

Cu.......... 1.0 max.

5.Inconel 601 PHYSICAL CONSTANTS  AND THERMAL  PROPERTIES

Density, Ib/in3 ........................................................................0.293

g/cm3 ......................................................................... 8.11

Melting Range, °F ...................................................2480 – 2571

°C .....................................................1360-1411

Specific Heat, Btu/lb•°F ....................................................0.107

J/kg•°C........................................................... 448

Curie Temperature, °F .......................................................<-320

°C .......................................................<-196

Permeability at 200 Oersted (15.9 kA/m)....................1.003

Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F......7.60

20 – 100°C, μm/m •°C .......13.75

Thermal Conductivity, Btu • in/ft2•h•°F..............................78

W/m •°C.......................................... 11.2

Electrical Resistivity, ohm • circ mil/ft............................... 717

μΩ•m................................................ 1.19

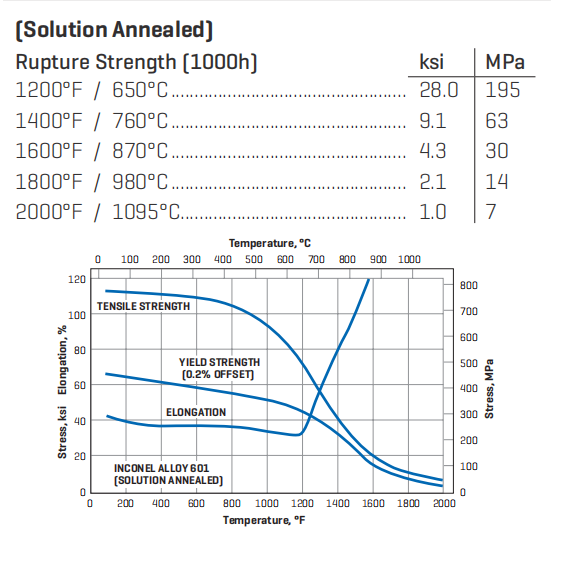

6.Inconel 601 TYPICAL MECHANICAL  PROPERTIES
