Inconel 617(UNS  N06617 W.Nr.2.4663)

1.Inconel 617 INTRODUCTION

A nickel-chromium-cobalt-molybdenum alloy  with an exceptional combination of metallurgical  stability, strength and oxidation resistance at  high temperatures. Resistance to oxidation  is enhanced by an aluminum addition. The  alloy also resists a wide range of corrosive  aqueous environments. Used in gas turbines  for combustion cans, ducting and transition  liners; petrochemical processing; heat-treating  equipment; and in nitric acid production.

2.Inconel 617 STANDARD  PRODUCT FORMS

Pipe, tube, sheet, strip, plate, round bar, flat bar, forging  stock, hexagon, wire and extruded section.

3.Inconel 617 MAJOR  SPECIFICATIONS

UNS N06617

ASTM B 166, B 168, B 546,  B 564

ASME SB-166, SB-168, SB-546,  SB-564

SAE AMS 5887 – 5889

ASME Code Cases 1956,   1982

Werkstoff Nr. 2.4663a

VdTüV 485 ISO 6207, 6208, 9724

DIN 17744, 17750-17754

4.Inconel 617 LIMITING CHEMICAL  COMPOSITION, %

Ni..........44.5 min.

Cr......20.0 – 24.0

Co.....10.0 – 15.0

Mo...... 8.0 – 10.0

Al ...........0.8 – 1.5

C.......0.05 – 0.15

Fe.......... 3.0 max.

Mn......... 1.0 max.

Si........... 1.0 max.

S....... 0.015 max.

Ti ........... 0.6 max.

Cu.......... 0.5 max.

B....... 0.006 max.

5.Inconel 617 PHYSICAL CONSTANTS  AND THERMAL  PROPERTIES

Density, Ib/in3 ........................................................................0.302

g/cm3 ......................................................................... 8.36

Melting Range, °F ...................................................2430 – 2510

°C ...................................................1330 – 1380

Specific Heat, Btu/lb•°F ....................................................0.100

J/kg•°C........................................................... 419

Coefficient of Expansion, 78 – 200°F, 10-6 in/in •°F........6.4

20 – 100°C, μm/m •°C ......... 11.6

Thermal Conductivity, Btu • in/ft2•h•°F..............................94

W/m •°C.......................................... 13.6

Electrical Resistivity, ohm • circ mil/ft............................... 736

μΩ•m................................................ 1.22

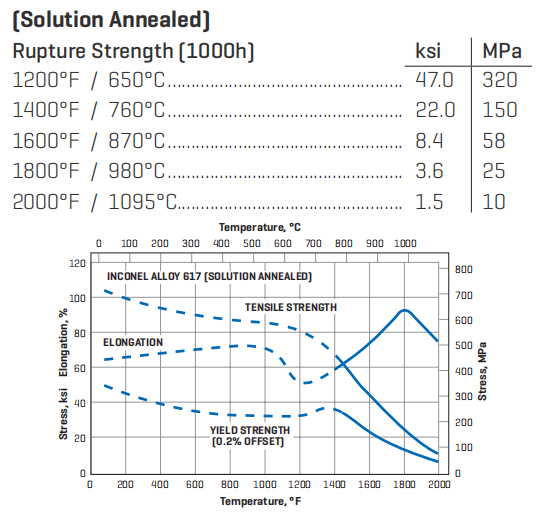

6.Inconel 617 TYPICAL MECHANICAL  PROPERTIES
