Hastelloy C276(UNS N10276 W.Nr. 2.4819)

1.Hastelloy C276 Introduction

A nickel-molybdenum-chromium alloy with  an addition of tungsten having excellent  corrosion resistance in a wide range of severe  environments. The high molybdenum content  makes the alloy especially resistant to pitting  and crevice corrosion. The low carbon content  minimizes carbide precipitation during welding  to maintain corrosion resistance in as-welded  structures. Used in pollution control, chemical  processing, pulp and paper production and waste  treatment.

2.Hastelloy C276 MAJOR  SPECIFICATIONS

UNS N10276

ASTM B 366, B 462, B 564, B 574,   B 575, B 619, B 622, B 626,   B 751, B 775, B 829

DIN 17744, 17750 – 17754

Werkstoff Nr. 2.4819

VdTüV 400

ASME SB-366, SB-564,   SB-574, SB-575, SB-619,  SB-622, SB-626, SB-751,   SB-775, SB-829

ASME Code Case 1924

NACE MR-0175/ISO 15156

ISO 6207, 6208, 9723 – 9725

3.Hastelloy C276 STANDARD  PRODUCT FORMS

Pipe, tube, sheet, strip, plate, round bar, flat bar, forging  stock, hexagon and wire.

4.Hastelloy C276 LIMITING CHEMICAL  COMPOSITION, %

5.Hastelloy C276 PHYSICAL CONSTANTS  AND THERMAL  PROPERTIES

Density, Ib/in3 .........................................................................0.321

g/cm3 ......................................................................... 8.89

Melting Point, °F.....................................................2415 – 2500

°C.....................................................1325 – 1370

Specific Heat, Btu/lb •°F....................................................0.102

J/kg •°C.......................................................... 427

Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F........6.8

24 – 100°C, μm/m •°C......... 12.2

Thermal Conductivity, Btu • in/ft2• h•°F...........................67.9

W/m•°C.............................................9.8

Electrical Resistivity, ohm • circ mil/ft..........................739.2

μΩ•m..............................................1.229

Permeability at 200 Oersted (15.9 kA/m)................. 1.0002

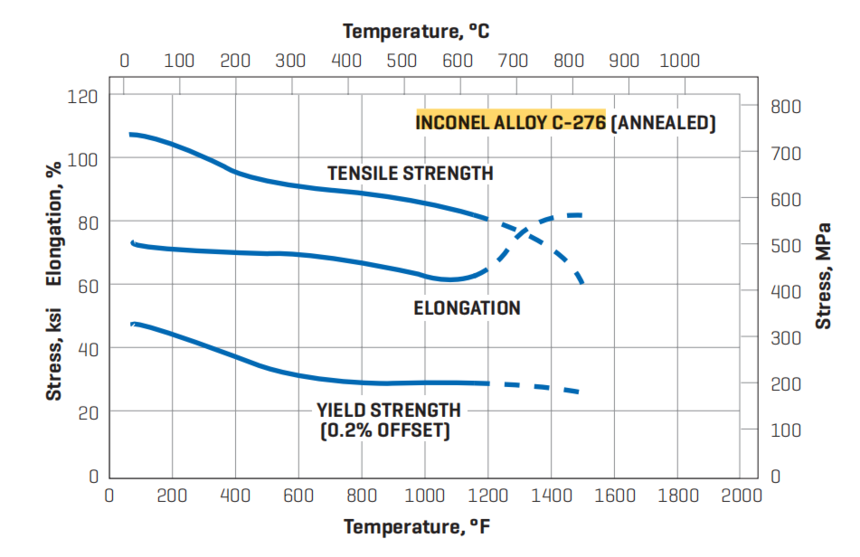

6.Hastelloy C276 TYPICAL MECHANICAL  PROPERTIES

(Annealed)

Tensile Strength, ksi............................................................... 100

MPa............................................................ 758

Yield Strength (0.2% Offset), ksi...........................................53

MPa..................................... 363

Elongation, % ..............................................................................62
